| Place of Origin |
Jiangsu China (Mainland) |
| Brand Name |
Vantek |
| Model Number |

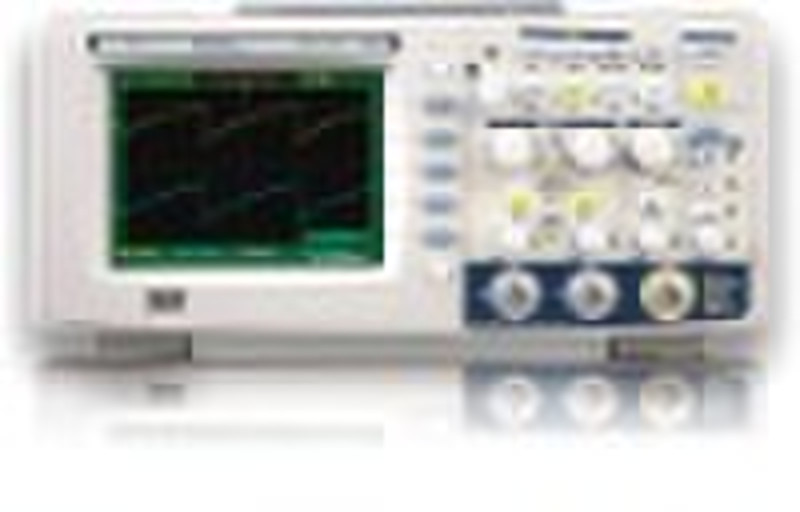

CA1022C |
Model/IndexCA1022CBand-width25MHzDisplay8X12 dividesWaveform Capture RateThe highest capture rate exceed 1000 times/secInput couplingDC, AC, GNDInput Max voltage400VVppTrigger TypesEdge, Pulse, Video, Slope, AlternativeTrigger ModesAuto, Normal, SingleTrigger SourceCH1CH2ExtExt/5AC LineSave/RecallProvide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall functionAuto Measure TypesVpp, Vmax, Vmin, Vamp, Vtop, Vbase, Cmean, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFFCousor measureManual, Track, AutoSample TypesReal Time, Equivalent TimeAverages4163264128256Math+-*InvertFFTWindow: HanningHanmmingBlackmanRectangularSampling Points: 1024 pointsXY ModePhase Error: ±3 degreesSupport the sampling rate : 5KSa/s1GSa/s (in a 1-2-5 sequence)Display ModelMain, Window, Window Zoom, Roll, X-YMenu Display2Sec, 5Sec, 10Sec,20Sec, InfiniteDisplay LanguageSimplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean, ItalianaPower Source Voltage100-240VAC47HZ-440HZ50VA MaxSize and Weight305mm x 154mm x133mm, about2.3kgAccessories(1:110:1)Problex2, EasyScope3.0 Computer Software System, Power Cord, USB cable,User Manual, EasyDsoLib software package,USB Host: Support USB flash drive storageUSB Device: Support PictBridge compatible printers and PC Remote controlOptionsRS-232 Communication Module, Serial Interface Communication Module, Pass/Fail Interface Module
