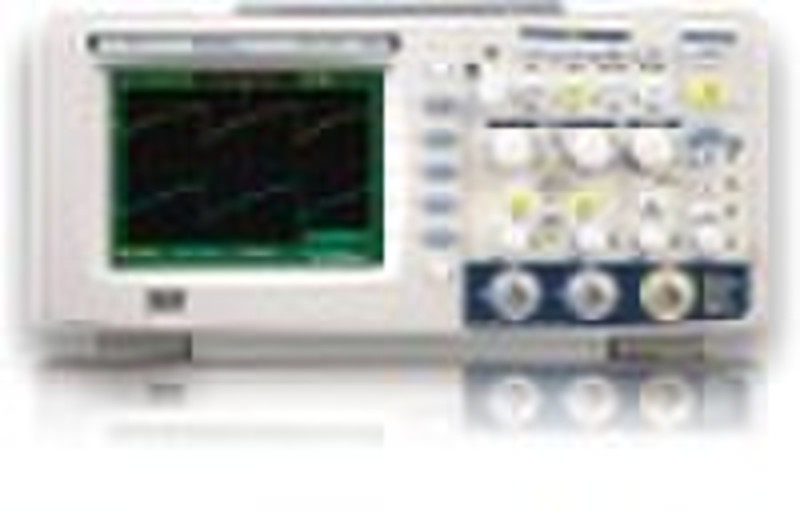

CA1062CA

Channelsdouble channel plus one EXT trigger channelReal time sampling rate1G Sa/s(single channel), 500M Sa/s(double channel)Equivalent sampling rate50G Sa/sMemory depth2MptsRise time<2.4ns<3.5ns<5.8nsInput impedance1MΩ||17pFTime base range2.5ns/div-50s/div,2.5ns/div-50s/div,5ns/div-50s/divRoll: 100ms-50s/divVertical sensitivity2mv-10v/div(1-2-5 order)Vertical resolution8bitTrigger sourceCH1, CH2, EXT, EXT/5, AC LineTrigger typesEdge, pulse, video, slope, alternativeMath operation+,-, *, /,FFTDigital filterHigh pass, low pass, band pass, band stopMax input voltage± 400V Pk-Pk CAT 1Internal save2 groups of reference waveform, 20 groups of settings, 20 groups of waveformExternal saveBitmap save, CSV save, waveform save, setting saveLastingTurn off, 1s, 2s, 5s, infiniteLanguageModern Chinese, ancient Chinese, English, Russian, French, Japanese, Korean, German, Arabic, Spanish, Italian,ConnectionUSB Host, USB Device, RS-232, Pass/Fail outDisplay5.7 inches color TFT-LCDPowerAC 100-240V, 47HZ-440HZ, 50VA Max
