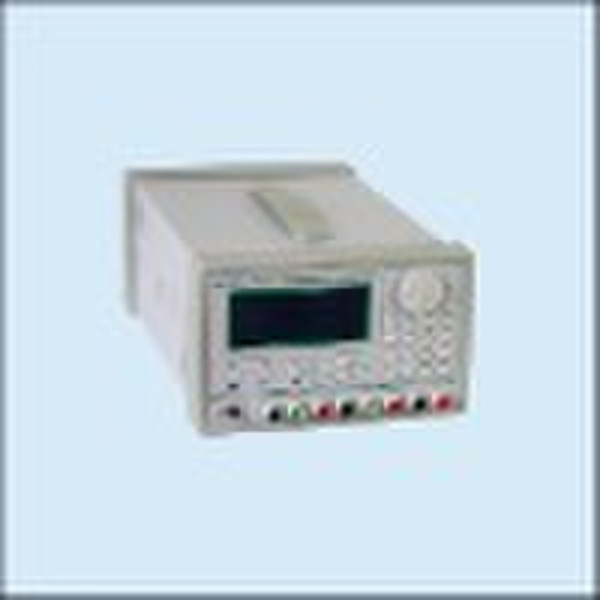

CA19301D/19303D/19305D PROGRAMMABLE POWER SUPPLY

CA19301D/19303D/19305D PROGRAMMABLE POWER SUPPLY Features: .Completely digital window and programmable operation interface .90 groups setting memory .High resolution 10mV, 1mA .Automatic series and parallel .High stability ,low drift,low ripple .OV, OC, OT protection .Software calibration .Standard RS232 and option USB .Intelligent fan control Specification: ModelVoltageCurrentLoad RegulationWeight(kg)CA19301DCH1,CH2CH30 32Vx2 0 6V0 1Ax2 0 3A/2ACV ≤ 0.03%+5mV,CC≤0.1%+2mAApprox.7.7CA19303DCH1,CH2 CH30 32Vx2 0 6V0 3Ax2 0 3A/2ACV ≤ 0.03%+5mV,CC≤0.1%+3mA ≤10mVApprox.8.0CA19305DCH1,CH2 CH30 32Vx2 0 6V0 5Ax2 0 3A/2ACV ≤ 0.03%+5mV,CC≤0.1%+5mA ≤10mVApprox.8.3Line Regulation: CV 1x10-4 +3mV, CC 1x10-4 +3mA Ripple &Noise CV ≤1.0mV rms,CC ≤1.0mA rms Response Time Voltage up: no load 2ms 15ms; full load 2ms 8ms Voltage down: no load 1.5s 300ms; full load 100ms 10ms Mesuring Accuracy CV ≤ ±(0.1%Rdg+2digits),CC ≤ ± (0.1%Rdg+5digits) Display Accuracy CV ≤ ±(0.1%Rdg+2digits),CC ≤ ± (0.1%Rdg+5digits) Input Voltage 110 127V AC ± 10%,220 240VAC ± 10%, Switchable Protection Voltage 0 33V Dimentions 215(W)x140(H)x350(D)mm
